The AMD Threadripper 3990X Review for Content Creators

6
CG Director Author Jerry Jamesby Jerry James   /  Updated


AMD’s Threadripper lineup launch, featuring overwhelming 24 and 32-core CPUs, left a trail of dizzy Intel HEDT and even enterprise-class Xeon processors in its wake.

The dust had barely settled over this one-sided ‘war’ when AMD announced the Threadripper 3990X with an astonishing 64 core count to complete the domination in this price and performance tier.

AMD Threadripper 3990X Heat Spreader Bare Photo

The 3990X inside our Review System

We’re excited to give you a first look at AMD’s 64-core Threadripper 3990X, including benchmarks and performance comparisons.

We’ll also answer a few pertinent questions like –

  • Should I buy one?
  • Is the 3990X worth it?
  • Are there any downsides to switching to an extremely high-core count processor like the 3990X?
  • How are the thermals?
  • What motherboard should be paired with the 3990X?

AMD Threadripper 3000 & Ryzen 9 Lineup: Specifications, Chipsets, and Platform Details

Let’s take a quick look at how the 3990X’s specs compare to previously launched 3rd Gen AMD Ryzen CPUs:

 Ryzen 9 3900XRyzen 9 3950XThreadripper 3960XThreadripper 3970XThreadripper 3990X
Cores/Threads12/2416/3224/4832/6464/128
Base Frequency3.8 GHz3.5 GHz3.8 GHz3.7 GHz2.9 GHz
Boost Frequency4.6 GHz4.7 GHz4.5 GHz4.5 GHz4.3 GHz
Max PCI-E Lanes2424646464
Supported SocketAM4AM4TRX40TRX40TRX40
Price$499$749$1499$1999$3990

Testing Environment

We made sure our testing was done in an environment that resembled normal everyday use of content creators as much as possible.

Threadripper 3990X Review System inside look

Inside the Case of the Threadripper 3990X Review System

We had the Threadripper 3990X inside a closed PC case that sat under a desk with default Fan curves applied. Our room temperature was at 20° Celcius.

Here’s the hardware we paired with the 3990X:

  • Hardware
    • CPU: AMD Threadripper 3990X 64-core Processor
    • Graphics Card: ASUS ROG Strix 2080Ti
    • CPU Cooler: Alphacool Eisbaer AIO 360
    • RAM: Corsair Dominator Platinum RGB 64GB DDR4 (CL16)
    • Motherboard: MSI Creator TRX40
    • Power Supply: Seasonic Prime 750W
    • Case: Phanteks Eclipse P600s
    • Storage & OS: Windows 10 Enterprise: Samsung 860 Evo 500GB
    • Secondary Storage & OS (Windows 10 Pro): Samsung 2TB 970 Evo Plus
  • Test-bed Type
    • Closed Case with Ample Airflow
    • Default Fan Curves
  • BIOS Version: E7C59AMS.132N1
  • OS (version): Windows 10 Enterprise 1909 (latest updates applied)
  • XMP Configuration for RAM: Loaded 3600 16-18-18-36 XMP Profile

Benchmark Results and Analysis

3990X Performance Differences between Windows Versions

We did all of our benchmark runs on both Win 10 Enterprise and Win 10 Pro as there was some indication in other media’s reviews that the Threadripper 3990X might need a higher Version of Windows 10 (i.e. Enterprise or Workstation) to be able to make full use of all its Cores.

We did not find any such differences in performance between Win 10 Enterprise and Pro OS Versions and AMD recently put out a statement that supports these findings.

Win10 Version Performance Differences Threadripper 3990X

Win10 Version Performance Differences Threadripper 3990X

The above graph is representative of all Benchmarks we ran on different Versions of Windows 10.

The differences between the OS Versions all lie within the margin of error and we found all cores to be utilized in their entirety, as long as the benchmarking Application supported scaling across so many cores.

But more on that later.

Cinebench

Well, the specifications alone might’ve been indicative of how these charts are going to look.

If you want a quick overview, here it is – unless you’re running heavy AVX-512 workloads, there’s no point even considering any Intel CPU (HEDT / Xeon / mainstream) if all you want is the very ‘best’ for multi-threaded workloads.

3990X Cinebench R20 Multi-Score _ CGDirector.com

Threadripper 3990X – Cinebench R20 Multi-Score (higher is better)

With Cinebench R20‘s near-perfect scaling with cores, it’s hardly any surprise that the Threadripper 3990X obliterates the competition by a huge margin.

If you’re doing a lot of time-sensitive and frequent CPU-rendering work in Cinema 4D’s physical or standard renderer, the 3990X seems like a decent upgrade if you need more power than what the Threadripper 3970X provides.

When it comes to single core performance, the 3990X is no slouch.

Surprisingly.

Even though it boasts an outrageous number of cores, it can keep up with mainstream parts that have traditionally always fared better in this benchmark.

Cinebench R20 Single-Score _ CGDirector.com

Threadripper 3990X – Cinebench R20 Single Core Score (higher is better)

For reference, Intel’s top-end Xeon Platinum 8180 offers 28% reduced single core performance compared to the 3990X, even though the 8180 houses way fewer cores.

Cinema 4D Viewport Benchmark

Unfortunately, the 3990X is not great when it comes to viewport performance.

This will affect general snappiness when working within Cinema 4D’s viewport on active tasks such as modeling and animation, and we find this score to be quite indicative of the overall system snappiness in many content creator Applications such as the Adobe Creative Cloud Suite.

Cinema 4D Viewport Performance Benchmark _ CGDirector.com

Thradripper 3990X Performance in Cinema 4D Viewport Bench (higher is better)

If you do need the rendering power of the 3990X, we recommend using a separate system for viewport workloads (“active” work such as modeling and animation) and rendering.

We are still trying to find out why Threadripper CPUs, and to be fair most Intel HEDT and Xeon CPUs, seem to perform so badly in this particular Benchmark, but it most likely comes down to low base clocks.

Blender Benchmark

Blender Benchmark _ CGDirector.com

Threadripper 3990X Performance in Blender’s Render Benchmark (lower is better)

The 3990X beats the Intel’s dual CPU offering easily in the Blender benchmark.

Since Blender’s Render Engine scales with core count just like Cinema 4D, the Threadripper 3990X is a great choice if you need the most powerful processor for this particular CG workload.

Corona Benchmark

Corona 1.3 Benchmark _ CGDirector.com

Threadripper 3990X Performance in Corona CPU Render Benchmark (lower is better)

Corona is a popular high-performance CPU-rendering plugin that’s available for lots of 3D Content Creation Applications such as Autodesk 3ds Max and Cinema 4D, and also as a standalone application.

It does seem to scale well with the massive number of cores that the Threadripper 3990X offers – making it an ideal CPU for those who need the absolute best in this workload.

Indigo Benchmark

IndigoBench 4.0.64 Supercar _ CGDirector.com

Threadripper 3990X Performance in Indigo Benchmark (higher is better)

Indigo is another popular render engine that’s used by a variety of professionals around the world.

The benchmark does show an improvement over AMD’s Threadripper 3970X when using the 3990X. However, the scaling isn’t perfect and even the 3990X can’t beat the value proposition of the other 3rd Gen AMD Threadripper CPUs.

Keyshot Performance

Keyshot Camera Render Benchmark _ CGDirector.com

Threadripper 3990X Performance in Keyshot Render Benchmark (higher is better)

Keyshot’s progressive real-time 3D rendering engine makes it a popular tool for CG artists and professionals. The progressive nature of its renderer, often found in GPU render engines, benefits Artists in doing rapid prototyping and multiple iterations with fast feedback for better end results.

Again, the 3990X decimates the competition by a healthy margin in this Camera Render Benchmark.

Vray Renderer

VRay 1.08 _ CGDirector.com

Threadripper 3990X Performance in VRay 1.08 Benchmark (lower is better)

VRay NEXT 4.10.7 _ CGDirector.com

Threadripper 3990X Performance in VRay NEXT 4.10 Benchmark (higher is better)

Both the VRay Benchmark and Vray Next workloads benefit from the insane number of cores in the Threadripper 3990X.

However, the improvement in VRay NEXT was quite substantial, shy of almost doubling performance when compared to the Threadripper 3970X. If you’re using VRay NEXT, the 3990X does seem to be a very worthy investment.

Thermals and PBO: Does it run too hot?

AMD’s 3rd Generation processors on the Zen architecture have been extremely energy efficient and thankfully, the 64-core processor doesn’t deviate from this pleasant trend.

In our testing, enabling PBO (Precision Boost Overdrive) did send temperatures soaring quite high. However, when running at stock, it stays within a healthy area, even at sustained and full load.

Threadripper 3990X cooled by the Alphacool Eisbaer 360 AIO

Threadripper 3990X cooled by the Alphacool Eisbaer 360 AIO

We were using the Alphacool Eisbaer 360 AIO for cooling the Threadripper 3990X. Here are the temps:

  • CPU 100% Multi-core Load (PBO Off): 62°C
  • CPU 100% Multi-core Load (PBO On): 95°C
  • Idle Temperature (PBO Off): 39°C
  • Idle Temperature (PBO On): 42°C

Although the idle temperatures didn’t change much when enabling PBO, the load temperatures jumped by quite a lot.

The Performance too did a jump as you can tell from the Cinebench R20 Score:

Threadripper 3990X PBO Score in Cinebench R20 Multi

Threadripper 3990X PBO Score in Cinebench R20 Multi

The performance gain you get by enabling PBO doesn’t seem to be worth it though– especially if your render workload does scale to using all 64 cores of this processor, which is exactly why you’d have bought this particular CPU.

Depending on your Cooling, you might get another 15% performance increase in multi-core workloads.

Given the price-tag though, you’ll want to make sure the CPU is not damaged prematurely because of high temperatures, which of course also make the fan noise in your machine go up considerably.

We find enabling PBO on such a monster of a CPU not worth the additional strain on the underlying hardware and CPU and not really necessary.

What Applications/Plugins/Workloads can make use of 64 Cores?

In a perfect world, a 64-Core CPU would perform twice as fast as a 32-Core CPU. This though is rarely the case and certainly needs full support from the underlying application workload you are running.

Threadripper 3990X Scalability Use-Cases

Threadripper 3990X Scalability Use-Cases

Let’s take a look at what applications scale well enough to make use of 64 Cores.

Since ‘use’ is kind of subjective, I’ll consider any application/workload that offers a 35%~ or higher improvement to the 32-core Threadripper 3970X’s performance.

Taking a look at the benchmarks we ran above, here are some workloads that are worth running on the 3990X:

  • Maxon Cinema4D’s Physical Renderer: Offering near-perfect scaling with additional cores and threads, using CPU rendering in Cinema4D is one of the most ideal CG workloads you can throw at the 3990X.
  • Blender’s Cycles Render Engine: Blender has always scaled well with higher core counts and that hasn’t changed even when you bring 64 cores and 128 threads into the equation. Compared to the 3970X, the 3990X almost halved the time required to complete the classroom render.
  • Corona CPU-Renderer: The Threadripper 3990X performs quite well with corona and if this is your primary Render Engine, it’ll be well worth the investment. Of course, if the processor doesn’t fit your budget, the Threadripper 3960X still offers the best value.
  • Keyshot: Keyshot barely made it to this list by offering approximately 35% better performance with the 3990X compared to the 3970X. If that margin is worth the extra money you’ll spend on a 64-core processor is a question only you’ll be able to answer.
  • V-Ray: This popular render engine can be used with a variety of professional software from Autodesk, Maxon, Blender, etc. The performance improvement when using a 64-core processor is substantial and will be well-worth the time you’ll save.

Downsides of Switching to a High-Core Count CPU

Due to the astounding number of cores packed into the 3990X, single core performance does take a bit of a hit.

If your workload can use all these cores and you do see the value in grabbing a 3990X for your build, I’d recommend building a separate workstation for doing active work within your viewport.

The experience will be way snappier and you’ll end up getting things done faster on both rendering as well as creating fronts.

AMD Threadripper 3990X

Think about how valuable the time you actively spend on the workstation is VS. the time that your PC renders on its own, overnight or on weekends. You’ll want to make sure that your much more valuable active work time is as fast and efficient as possible.

The Threadripper 3990X’s active work performance is by no means unusable by any stretch of the imagination.

It has a lot to do with where you’re coming from too.

If you’re upgrading a system that offered worse viewport performance than the 3990X, then it’ll still feel like an upgrade. However, for someone coming from a high-frequency, lower-core-count CPU, it might feel like a downgrade when doing active work.

This changes of course once you fire up some renders and see something like this going on 🙂

128 Threads in Taskmanager

128 Threads in Taskmanager

Should you Buy the 3990X: Is Intel even a consideration?

From a value standpoint, it’s hard to beat what the Threadripper 3960X offers at its price point.

You get all the features of the TRX40 platform without compromising on single-core performance and still get amazing multi-core performance.

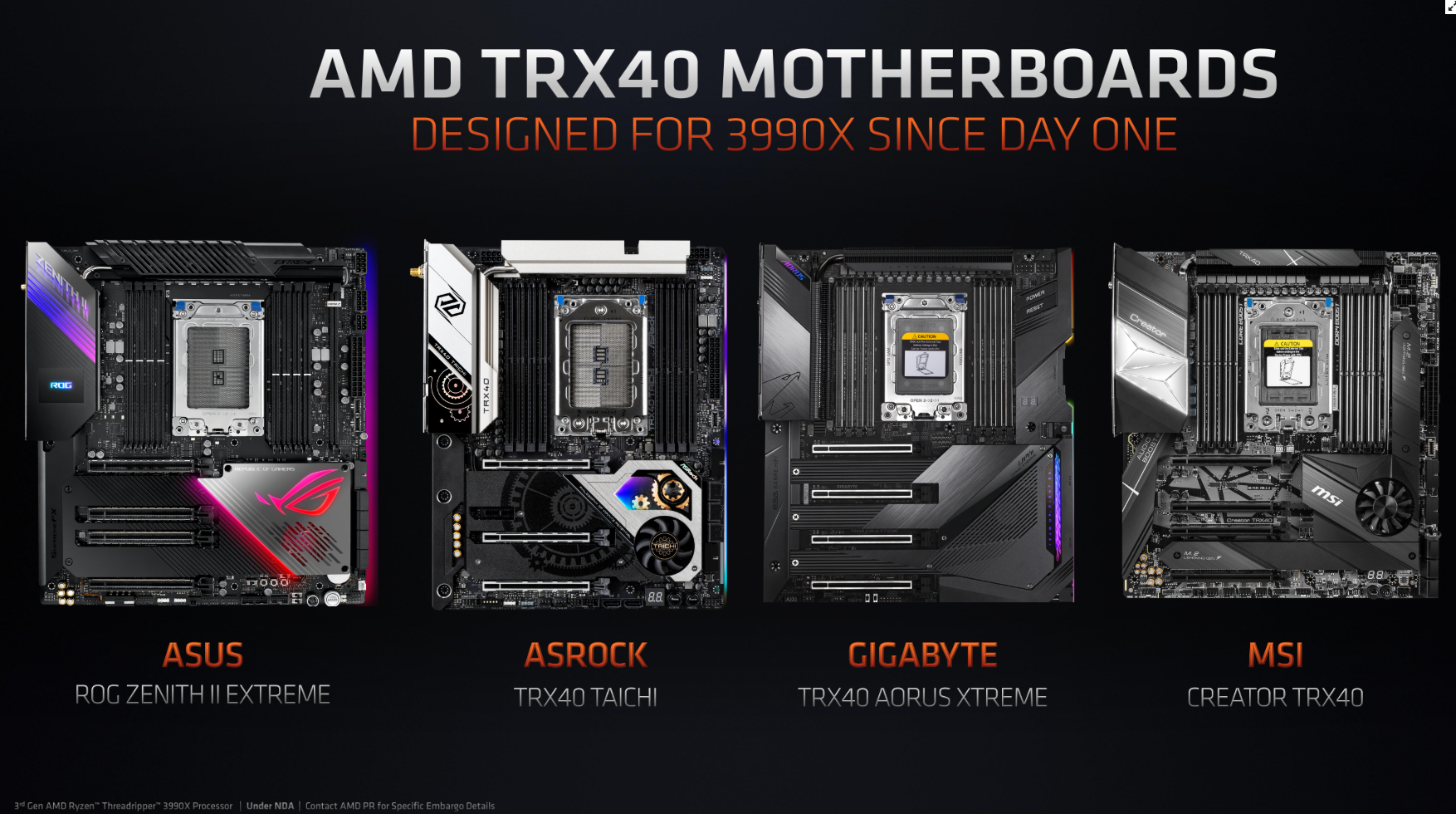

3990X-Ready TRX40 Motherboards Line-Up

Image-Source: AMD

But if you’re after the very best CPU rendering beast on the market, well, the 3990X has no real competition.

AMD’s in a league of its own here and is basically just competing with itself. Intel’s HEDT offerings don’t come close to offering what AMD can offer.

Moreover, from what I’ve seen, since Intel’s 50% price drop for their HEDT lineup, availability has been extremely scarce – making it almost impossible to buy an Intel HEDT processor at the listed price.

AMD’s Threadripper 3990X is an excellent processor; no doubt about it. But is this the processor you should buy for your next build?

Like always, it depends.

If you’re building a separate render machine with a lot of CPU rendering workloads in the pipeline, yes, the 3990X is an excellent choice if it’s not outside your budget.

Threadripper 3990X Packaging

However, if this is your only PC and you plan to work on the machine, I’d think twice.

The viewport performance isn’t that promising, indicating that it wouldn’t be as snappy an experience as is possible with mainstream CPUs such as the Ryzen 3900X or the Intel i9 9900k.

Even while benchmarking the processor and playing around with it for a while, the viewport navigation experience was less than optimal.

On the other hand, when you spin up a CPU-heavy render workload, it’s really astonishing how much power the 3990X packs. It zips through previously ‘complex’ renders in no time at all.

Best TRX40 Motherboards for the Threadripper 3990X

Handling 64 physical cores was never going to be an easy task. However, most Threadripper motherboards seem to have come overbuilt to eventually handle exactly this processor release from AMD. That said, if you’re considering a $4000~ CPU, I won’t recommend shopping at the bottom tier of the TRX40 motherboards lineup. When shopping for professional motherboards like these, you’re mostly looking for specific features rather than something that ‘works.’

Note – From a strictly VRM standpoint, all the motherboards listed in our Best TRX40 motherboards article would suffice. Unless you’re overclocking (which is a bad idea for professional workloads), none of the motherboards will hold back a Threadripper 3990X.

Nonetheless, here are a few quick picks. These motherboards provide an excellent platform for a processor like the 3990X and also offer decent value from a fiscal standpoint.

ASUS ROG Zenith II Extreme Alpha

ROG Zenith II Extreme Alpha Box

Image-Source: ASUS

The Zenith II Extreme was already a great motherboard, but it looks like ASUS didn’t like their flagship TRX40 motherboard coming in at 2nd or 3rd place when it came to VRM performance.

The improved version (Zenith II Extreme Alpha) replaces 70A power stages with 90A power stages, leaving every other aspect of the motherboard identical to the original. Since the Alpha (with 90A power stages) seems priced at around the same price as the previous release, there’s really no reason to get the Zenith II Extreme (the old one; these names are confusing).

Zenith II Extreme Alpha Board layout

Image-Source: ASUS

The slot layout isn’t ideal for those wanting a double-slot, quad-GPU configuration. However, if you plan to use add-in cards for NVMe devices and such, this layout is just fine. The full-length PCI-E 4.0 slots offer 16/8/16/8 lanes when all 4 of them are populated.

TRX40 Zenith II Extreme Alpha Backpanel

Image-Source: ASUS

Personally, I absolutely love the back panel of the Zenith II Extreme Alpha. It packs in an ample number of USB ports (USB-A and USB-C) in addition to offering dual LAN (Aquantia 10G and Intel Gigabit), WiFi 6, and Bluetooth.

MSI TRX40 Creator

MSI TRX40 Creator Box

Image-Source: MSI

MSI’s TRX40 Creator is priced quite competitively and offers excellent VRM performance, allowing it to handle even an overclocked 3990X quite easily. Even pegged at a 100% on all cores, on a long render task, the motherboard didn’t hold back the 3990X at all.

It comes with an M.2 NVMe expander card, allowing you to add faster storage if you’re willing to sacrifice one of your full-length PCI-E slots.

MSI TRX40 Creator Board Layout

Image-Source: MSI

Like many other TRX40 motherboards, the full-length PCI-E slots on MSI’s TRX40 Creator offer 16/8/16/8 lanes when all of them are populated. Of course, the layout again doesn’t allow for double-width, quad-GPU configurations. If you’re set on using 4x GPUs, each needing double-slot spacing, I’d recommend going for the Gigabyte TRX40 Aorus Extreme.

MSI TRX40 Creator Back panel

Image-Source: MSI

The back panel connectivity is decent and I certainly don’t have any complaints here. It comes equipped with dual LAN – Aquantia 10G and Intel Gigabit. If you’re looking for uncompromising VRMs as well as high-end features at a bargain price for your Threadripper 3990X, MSI’s Creator TRX40 motherboard is one of the best options on the market.



That’s about it from our side. What’s your impression of the 3990X? Let us know in the comments!



CGDirector is Reader-supported. When you buy through our links, we may earn an affiliate commission.

Jerry James

Hi, I’m Jerry – a Freelance Technical Content Writer and Strategist.
I’ve been building PCs for the past two decades, and I’m not stopping anytime soon.
Feel free to comment and ask for my inputs on your PC builds; I’ll do my best to help out!

6 Comments

Also check out our Forum for feedback from our Expert Community.

Leave a Reply

  • Tony

    Hey,

    Thanks for sharing all that great information on your homepage! I really enjoy reading through it, trying to help my brother out findings the best components for his needs.

    He’s finally ready to drop some money on a dedicated rendering machine. He is working with Cinema 4d and Corona and is looking for a machine to serve as a dedicated render node with reasonable response times (he’s into architecture rendering images as well as animations).

    With the information I’ve found here I tried to come up with a good build for the 3990x cpu. I’d appreciate any comments from your side. What do you think of it?

    Mainboard: MSI Creator TRX40 (7C59-003R)
    CPU Fan: Noctua NH-U14S TR4-SP3
    Memory: Corsair Vengeance RGB PRO schwarz DIMM Kit 64GB, DDR4-3466, CL16-18-18-36 (CMW64GX4M8C3466C16)
    Storage: Samsung SSD 970 EVO Plus 500GB, M.2 (MZ-V7S500BW)
    Graphics: MSI GeForce RTX 2070 Ventus GP, 8GB GDDR6, HDMI, 3x DP (V375-423R)
    Power: Corsair RMx Series RM850x 2018, 850W ATX 2.4 (CP-9020180-EU)
    Case: Fractal Design Define XL R2 (FD-CA-DEF-XL-R2-BL)

    I’m not sure what kind of graphics card to use best as I see this as a point to save some bucks, also the power might be over the top…
    What do you recommend in regards to memory and cpu cooling, especially in terms of physical space?

    Thanks for your input!

    • Jerry from CGDirector

      Hey Tony,

      The build looks well-rounded and I wouldn’t really change much. If your brother only needs a dedicated CPU rendering node, you could drop the GPU down to a more mid-range option to save a few hundred bucks there.
      If you want to strike a balance and retain some of that GPU power for sporadic GPU rendering tasks, I’d say drop down to the RTX 2060 Super.

      As for the power supply, it’s pretty okay for a build like this. No need to change 🙂

      Cooling the 3990X isn’t as hard as I thought it would be. Any decent 360mm AIO should do the trick. However, availability varies by region so I can’t recommend one outright. Could you list a few options that you have so I can give them a look?

      PS. Try finding some 3600 CL16 memory if you can. They’re usually priced very close to 3200/3466 kits and will offer better value.

      Cheers!
      Jerry

      • Tony

        Hey Jerry,
        Thanks for your fast reply! I really appreciate it!

        So, I’ll go with that memory: Corsair Vengeance RGB PRO DIMM Kit 64GB, DDR4-3600, CL18-19-19-39 (CMW64GX4M8X3600C18)

        The 2060 Super is not really cheaper than the 2070. Do you think a regular 2060 would do it as well? Eg. MSI GeForce RTX 2060 Ventus XS 6G OC, 6GB GDDR6, HDMI, 3x DP (V375-035R)

        And in regards to the AIOs the following seem to be available in my region:
        Enermax LiqTech TR4 II 360 (ELC-LTTRTO360-TBP)
        Gigabyte Aorus Liquid Cooler 360 RGB (GP-ALQCO360)
        Cooler Master MasterLiquid ML360 TR4 RGB (MLX-D36M-A20PC-T1)
        DeepCool Castle 360 RGB V2 (DP-GS-H12AR-CSL360V2)
        SilentiumPC Navis EVO ARGB 360 (SPC242)

        I’ve no experience with AIOs, so if you could recommend one that plays together with the case and CPU, I’d be really happy 🙂

        • Jerry from CGDirector

          Hey Tony,

          That kit looks good to me 🙂

          Yes, the regular 2060 should do as well.

          As for the AIOs, go with ML360 from Cooler Master. I’ve used it and it’s held up pretty well so far 🙂

          Cheers and sorry about the late reply!
          Jerry

  • Brent W

    Thanks for the review! I am looking to buy a seperate pc for rendering purposes in vray only and am thinking about going for the 3990X. This would be sort of a headless render node, that I can access via remote desktop, so no strong graphics card is needed.

    Anyway, I was wondering which motherboard would be best for using with the 3990X. I read the Threadripper Motherboard Article on this site, but didnt find any info on the 3990X and which Motherboards are supported or best to buy for this cpu?

    Thanks, Brent

    • Jerry from CGDirector

      Hey Brent,

      Since most TRX40 motherboards are well-built, it’s more about picking a board that meets your professional requirements. Gigabyte’s TRX40 Aorus Extreme is a solid option that offers a great slot layout, excellent VRMs, as well as ample features for most professionals. It can definitely handle long render sessions with a 64-core processor without any issues whatsoever 🙂

      Even MSI’s TRX40 Creator would do the trick if you don’t really care about anything other than being able to run the CPU full-tilt for heavy render workloads.

      PS. I’ll add a few details about the 3990X motherboards to the Threadripper article. Thanks for the heads up!

      Cheers!
      Jerry
